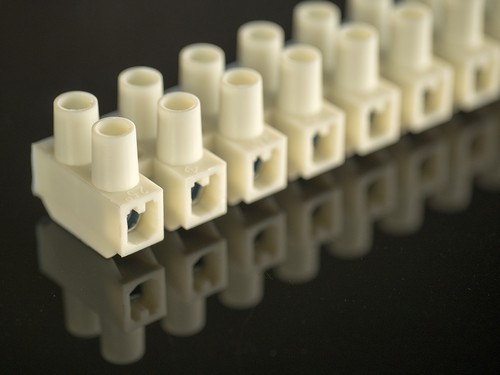

Connector 206IT
Technical Data
| Housing | Fire retardant high temperature thermoplastic |
|---|---|
94V-2 grade |
|
| Insert | Brass, Nickel plated |
| Voltage / Ampere (IEC) | 600V / 24A |
| Voltage / Ampere (UL) | 600V / 30A |
| Cross Section (mm²) | 4mm² |
| AWG | 20-12 |
| Temperature | |
| Working | -40℃ to 100℃ |
| Short Period | 140℃ |
| Dimension (mm) | |
| (a) Length | 116.5 |
| Cross Section | |
| (b) Height | 18.0 |
| (c) Width | 19.0 |
| (d) Fixing hole | 3.6 |
| (e) Wiring hole | 3.45 |
| (f) Pitch | 10 |
| (g) Screw size | M3x6 |
| (h) Foot width | 2.0 |
| (i) Foot height | 3.8 |
| Per ctn | 50x10 |
