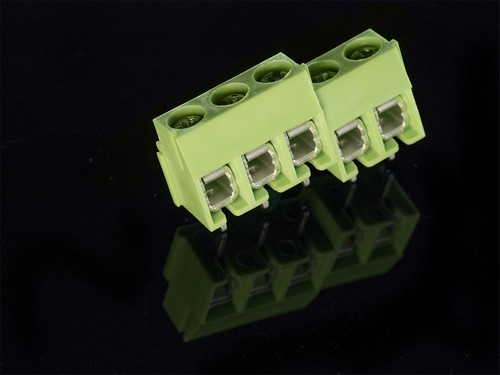

PCB Terminal M400 PCB Terminal
Technical Data
| Housing | Polyamide 6/6 |
|---|---|
94V-0 grade |
|
| Insert | Brass, tin-plated |
| Wire Protector | Stainless steel |
| Screw | M2.6 x 5.1, blue chromated |
| Voltage / Ampere | 250V / 10A |
| Voltage / Ampere (UL) | 300V / 10A |
| Pin spacing | 2.5mm – 10.16mm |
| Short Period | 140℃ |
| Wiring | 0.5 - 1.5mm² / AWG 20-16 |
| Temperature | |
| Working | -40℃ to 120℃ |
