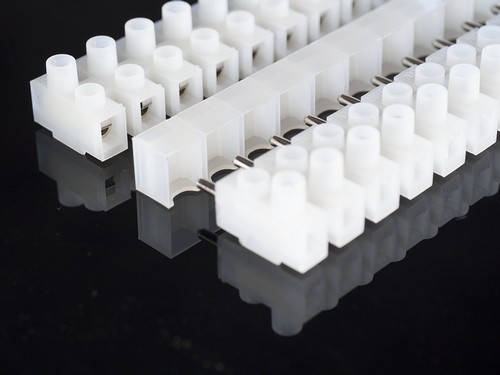

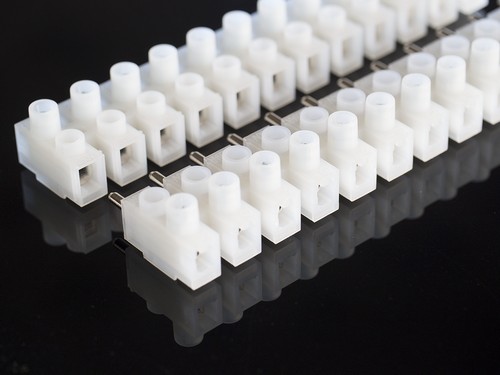

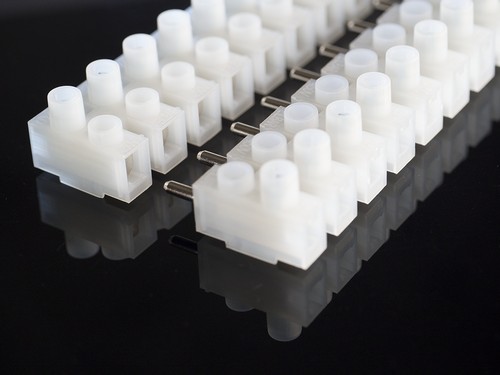

Connector 250 & 260 SERIES CONNECTORS
Technical Data
| Type no. | 250 |
260 |
|---|---|---|
| Housing | Polyamide 6/6 |
|
94V-2 grade |
||
| Insert | Brass, Nickel plated |
|
| Screw | M2.6 x 5.4 |
M3.5 x 7.2 |
| Voltage (V) | 450 |
450 |
| Ampere (A) | 6 |
10 |
| Cross Section (mm²) | 2.5 |
4 |
| Temperature | ||
| Working | -40℃ to 100℃ |
|
| Short Period | 140℃ |
|
| Dimension (mm) | ||
| a) Length | 116.5 |
139.5 |
| b) Height | 15.3 |
18.0 |
| c) Width | 20.5 |
23.5 |
| d) Fixing hole | 3.0 |
3.5 |
| e) Wiring hole | 3.2 |
4.2 |
| a) Pitch | 10 |
12 |
